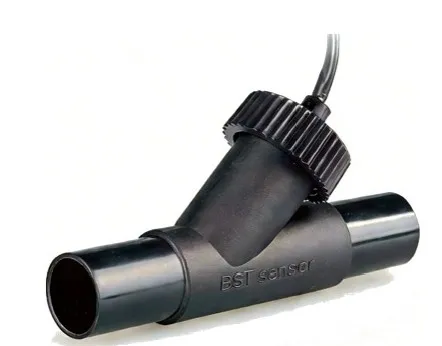

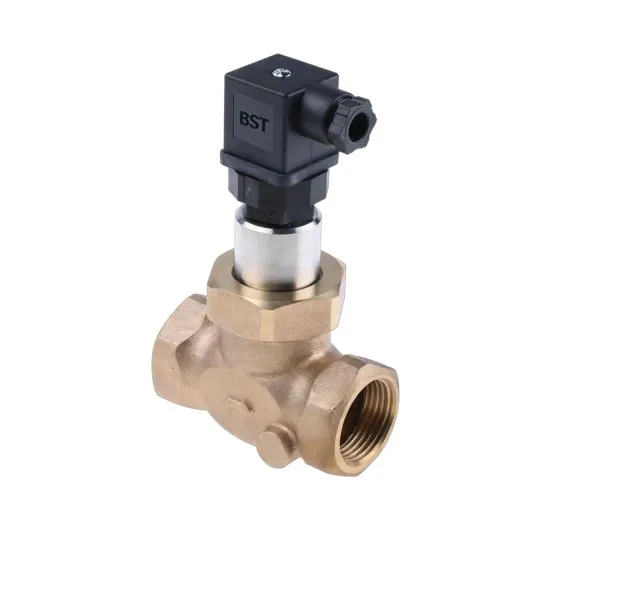

BW1 Piston-type flow switches are designed to reliably indicate the presence or absence of flow in both liquid and gaseous media, even at very low flow levels.
Certain configurations are capable of sensing liquid flow down to 50 cc/min, as well as gas flow rates as low as 2 SCFH.
The devices feature a compact and space-saving mechanical design, with standard process connections available in 1/4" NPT.
Each unit is manufactured with tight tolerances to ensure consistent switching performance and high measurement reliability.
High inline pressure capability.
Wide temperature range.
No external power required
Mechanically actuated reed switch design, offering reliable flow detection without the need for external power.
Rugged one-piece magnetic PPS composite piston.
Available in multiple housing materials.
| Part Number | Flow Setting (GPM) | Housing Material | Port Type | Max Operating Pressure |
| BW1-025-B-A | 0.25 | Brass | 1/2" NPT Male | 1500PSI(103bar) |
| BW1-050-B-A | 0.5 | Brass | 3/8" NPT Male | 1500PSI(103bar) |
| BW1-050-P-A | 0.5 | Plastic | 3/8" NPT Male | 125PSI(8.6bar) |
| BW1-100-S-A | 1 | 316 Stainless Steel | 3/8" NPT Male | 1500PSI(103bar) |
| BW1-015-S-A | 0.15 | 316 Stainless Steel | 1/4"Compression | 1500PSI(103bar) |
| BW1-150-S-A | 1.5 | 316 Stainless Steel | 3/8" Compression | 1500PSI(103bar) |
| BW1-200-S-A | 2 | 316 Stainless Steel | 1/2" Hose Barb | 500PSI(34bar) |
