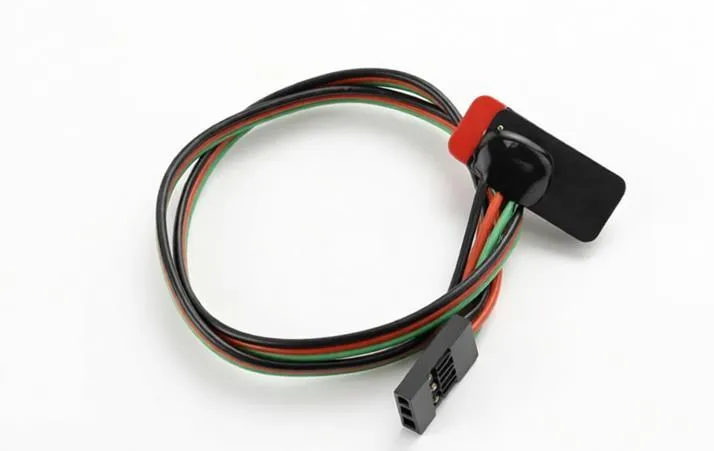

The BF5-NC-001 is a non-contact capacitive liquid level sensor designed to detect the presence or absence of liquid through the wall of a non-metal container.
Installed on the outside of the container, the sensor detects changes in capacitance caused by the presence of liquid without coming into direct contact with the liquid. Its compact, solid-state design makes it suitable for OEM equipment, plastic tanks, and other space-constrained applications.
| Parameter | Specification |
|---|---|
| Detection Method | Non-contact capacitive sensing |
| Detection Type | Point-level liquid detection |
| Container Material | Non-metal |
| Container Wall Thickness | 1–5 mm |
| Power Supply | 2.5–5.5 VDC |
| Operating Current | 290 µA @ 5 V |
| Output | HIGH / LOW |
| Connection | 3-wire |
| Connector | JST 2.54 |
| Mounting | Adhesive tape |
| Operating Temperature | -30°C to +85°C |
| Protection Rating | IP62 |
A non-contact capacitive liquid level sensor detects liquid without touching it. Unlike traditional float switches, the BF5-NC-001 is mounted externally on the wall of a non-metal container.When liquid reaches the sensing position, the change in dielectric properties causes a change in capacitance. The sensor detects this change and provides a digital output signal.This makes the BF5-NC-001 suitable for point-level liquid detection where direct contact with the liquid or a tank opening is undesirable.
Detects liquid through the wall of a non-metal container without direct contact with the liquid.
The solid-state design eliminates mechanical floats and moving components, providing a compact and maintenance-free sensing solution.
The sensor is installed outside the container using adhesive tape, eliminating the need for a hole or threaded mounting structure.
The sensor operates from 2.5–5.5 VDC with a typical operating current of 290µA at 5 V.
Its compact structure is suitable for space-constrained equipment and OEM applications.
Designed for non-metal container walls with a recommended thickness of 1–5 mm. Suitable container materials may include PP, PE, PVC, ABS, and other compatible plastics.
The BF5-NC-001 can be used for point-level liquid detection in:
Home Appliances – water tanks, water dispensers, humidifiers, coffee machines, and condensate systems
HVAC Equipment – condensate detection and overflow protection
Water Treatment Equipment – plastic tanks and reservoirs
Medical & Laboratory Equipment – applications requiring non-contact liquid detection
Industrial Equipment – compact fluid reservoirs and liquid monitoring systems
OEM Equipment – embedded liquid presence or level detection
