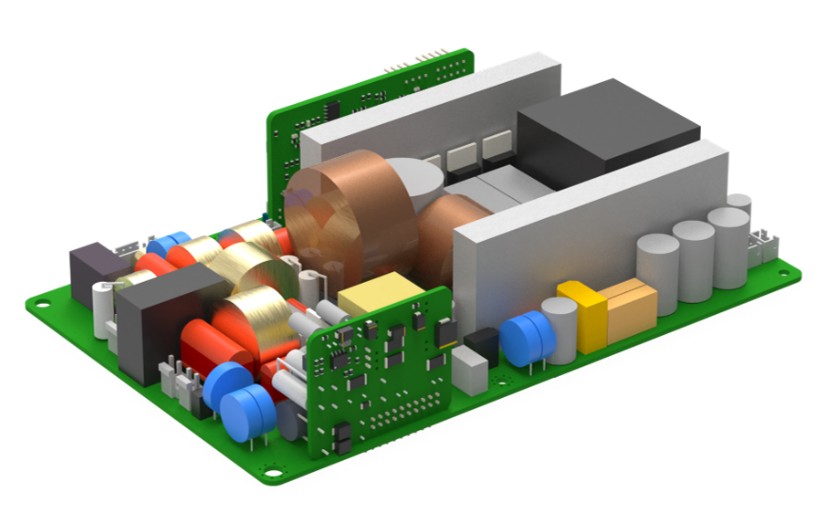

Solar energy is one of the fastest-growing sources of clean power in the world. At the heart of every solar system is the PV inverter – the device that turns the direct current (DC) electricity from solar panels into alternating current (AC) electricity that homes, businesses, and the grid can use.
When people think about PV inverters, they often focus on electronics or software. But there are two unsung heroes inside every inverter that make all the difference: transformers and inductors. Without these magnetic components, solar inverters wouldn’t be safe, efficient, or reliable.
The Role of Transformers in PV Inverters
Transformers are essential for:
Safety – providing electrical isolation so the solar array and the grid stay safely separated.
Adaptability – adjusting voltage levels to match what the grid or local system requires.
Reliability – protecting users and equipment from dangerous electrical faults.
Modern PV inverters often use compact, high-frequency transformers. These deliver excellent performance while keeping the inverter lightweight and efficient.
The Role of Inductors in PV Inverters
Inductors might be less visible, but they are just as critical:
Smoother Power Output – filtering out unwanted “noise” to deliver clean, stable electricity.
Efficiency – helping the inverter operate at high performance, so more solar energy gets converted into usable power.
System Longevity – protecting both the inverter and connected equipment from stress caused by unstable current.
Simply put, inductors keep the flow of power steady and efficient.
Why Quality Materials and Design Matter
Not all transformers and inductors are created equal. The materials and design make a huge difference in how well a PV inverter performs:
Core materials like ferrite or nanocrystalline metals reduce energy loss.
High-purity copper windings improve efficiency.
Strong insulation and thermal protection ensure long-term reliability even in tough environments.
For customers, this means:
1, Higher energy yield
2, Longer inverter lifespan
3, Lower maintenance costs
4, Peace of mind knowing the system is safe and reliable
What Makes BST’s Transformers and Inductors Different?
At BST, we don’t just manufacture standard parts — we engineer magnetic components tailored to each PV inverter application. This ensures higher efficiency, reliability, and performance compared to generic solutions.
In one project for a string inverter manufacturer, BST designed a custom nanocrystalline-core inductor.
Challenge: The customer’s existing inductor from another supplier was causing high heat and limiting efficiency.
BST Solution: We optimized the winding layout with litz wire to reduce AC resistance and used a low-loss nanocrystalline core.
Result: Efficiency improved by over 1.5%, and operating temperature dropped by 15°C, extending inverter lifespan.
