What is an iron core inductor?

What is an iron core inductor?

Table of Content [Hide]

    Inductors are essential components in nearly every power electronics circuit, serving as active energy storage devices that supply stored energy during different operational modes. Beyond energy storage, inductors function as filters for switched current waveforms and provide transient current limiting in snubber switches. Inductors are categorized based on their materials and construction, with each type offering distinct advantages. This article focuses on the iron core inductor, exploring its construction, working principles, and practical applications in various electronic systems.


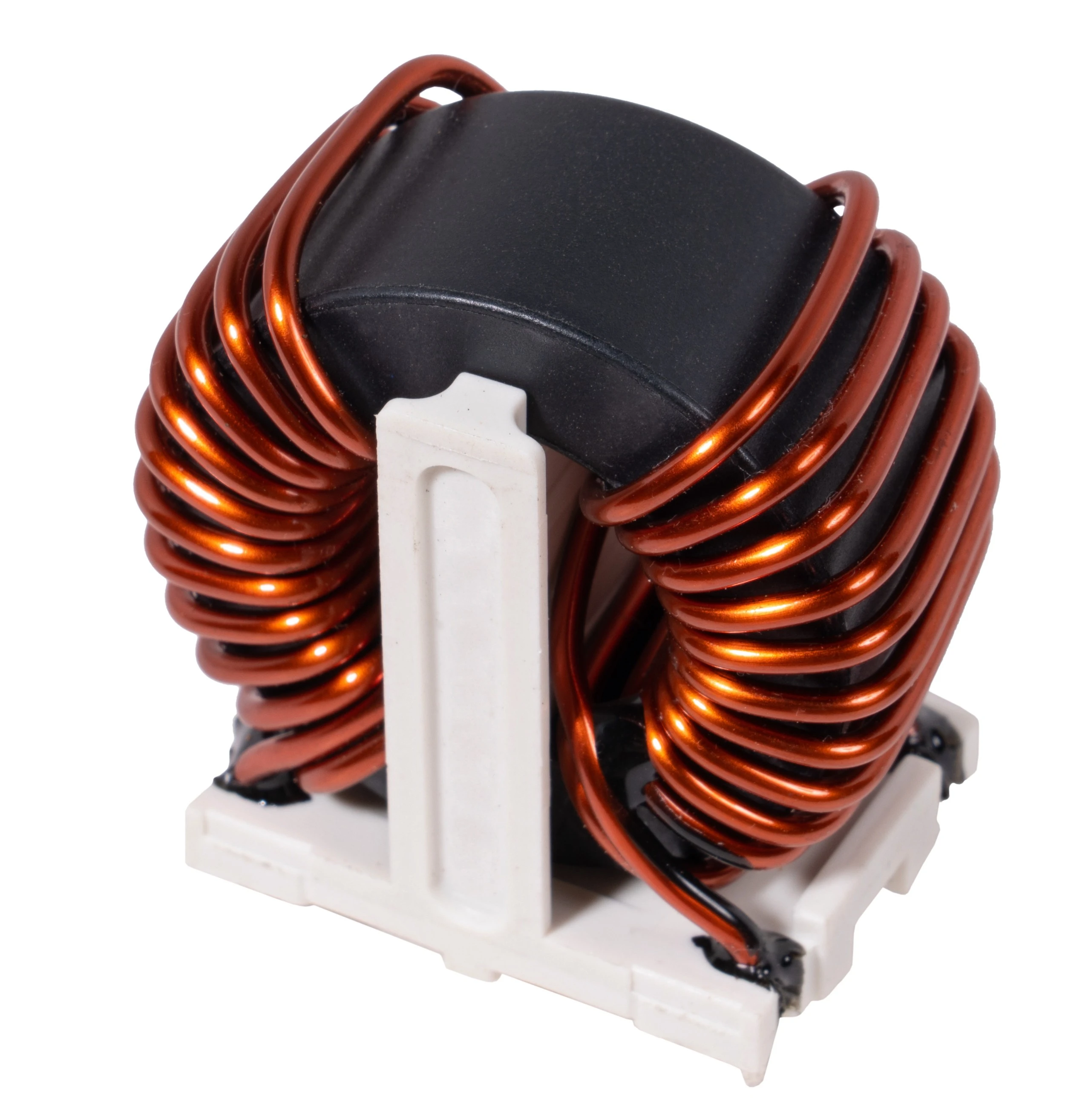

    What Is an Iron Core Inductor?


    An iron core inductor is a fixed-value inductor that incorporates an iron core within its coil to enhance its inductance. These inductors exhibit a relatively low inductance value, but the iron core's unique magnetic properties significantly strengthen the magnetic field, improving the inductor's ability to store energy. By amplifying the magnetic field, the iron core allows the inductor to achieve higher inductance compared to other types with similar designs, making it a valuable component in specific applications.


    Iron Core Inductor Construction


    The construction of an iron core inductor involves wrapping a coil of insulated copper wire, or another conductive material, around an iron core. This configuration enhances the magnetic field, enabling the inductor to store more magnetic energy than an air core inductor with the same number of turns. In traditional designs, the iron core is shaped into a geometric form, such as a cylinder, enclosing a helically wound coil. The wire used in these inductors may include materials like nickel-iron alloys, magnesium, or cadmium, with diameters ranging from 0.014 to 0.56 mm, depending on the current levels and frequency range of the application. The number of turns in the coil determines the inductance generated when voltage is applied. A common design approach combines an iron core with ferrite material, wound to form magnetic circuits, and coated with epoxy resin to create a magnetic barrier within the cylindrical structure. This longitudinal winding typically forms a closed loop, aligned with the core material's length, to optimize inductance.


    Iron Core Inductor Working Principle


    The operation of an iron core inductor relies on the principle that magnetic induction is proportional to the rate of change of magnetic flux in a circuit. When alternating current flows through the coil, the magnetic field generated attempts to extend beyond the coil's axis, inducing eddy currents within the iron core. These eddy currents produce an opposing magnetic field, which counteracts the primary field, reducing voltage leakage and stabilizing the system. The strength of this effect increases with the number of coil turns and the coil's resistance, allowing iron core inductors to handle significant electrical power without damage. Additionally, moving the iron core in or out of the coil can adjust the inductance, and the iron material's magnetic properties amplify the field, making these inductors more effective at storing magnetic energy compared to air core designs.


    Iron Core Inductor vs. Air Core


    Iron core inductors differ significantly from air core inductors in their construction and performance. Iron core inductors use magnetic cores made of iron or ferrite, resulting in higher inductance values and superior magnetic energy storage. However, they experience some core losses and are typically larger, operating effectively at frequencies up to several hundred megahertz. These inductors are commonly used in low-frequency applications, such as audio devices, industrial power supplies, and inverter systems. In contrast, air core inductors use non-magnetic materials like ceramic or plastic, or simply air, within their windings, leading to lower inductance values and reduced energy storage capacity. They are more efficient at high frequencies, up to 1 GHz, and do not suffer from core losses, making them smaller and ideal for high-frequency applications like television and radio receivers.


    Iron Core Inductor Formula


    The inductance of an iron core inductor is influenced by the core material. A magnetic core, such as iron or ferrite, increases inductance, while a non-magnetic core, like copper, reduces it. The inductance is calculated using the formula L = µ0 µr N²A/l, where N represents the number of turns, l is the coil length, µ0 is the permeability of free space, µr is the relative permeability (greater than 1 for iron, less than 1 for copper), and A is the coil's cross-sectional area. This formula highlights how the iron core's high relative permeability significantly boosts inductance, making these inductors effective for energy-intensive applications.


    How to Choose an Iron Core Inductor


    Selecting an iron core inductor requires careful consideration of its properties and the circuit's requirements. Inductors vary in shape, core material, and application, each affecting performance differently. Key factors to evaluate include the inductor's performance, circuit specifications, radio frequency considerations, size, shielding, and tolerance. The inductance is influenced by the number of coil turns, with more turns increasing inductance; the coil length, where longer coils reduce inductance; and the core material's magnetic permeability, where higher permeability enhances inductance. By assessing these factors, one can choose an iron core inductor that meets the specific needs of the application.


    Iron Core Inductor Advantages and Disadvantages


    Iron core inductors offer several benefits, including low energy losses, simple construction, and a high Q-factor, which indicates efficient performance in resonant circuits. Their large inductance values make them suitable for applications requiring significant energy storage. However, they have drawbacks, such as increased losses at high frequencies, complex isolation requirements, and higher eddy current and harmonic current ratings, which can limit their use in high-frequency environments. These characteristics make iron core inductors better suited for low-frequency applications where their advantages outweigh their limitations.


    Iron Core Inductor Applications


    Iron core inductors are widely used in various applications due to their high inductance and energy storage capabilities. They are employed in filter circuits to stabilize ripple voltage, ensuring smooth power delivery. In audio-frequency applications and industrial power supplies, they serve as critical components for energy management. Iron core inductors are also used as audio-frequency chokes in fluorescent tube lights, in inverter systems for efficient power conversion, and in rapid transit and power conditioning systems to regulate energy flow. Their ability to handle significant power makes them indispensable in low-frequency environments, such as audio equipment, where high inductance is essential.
